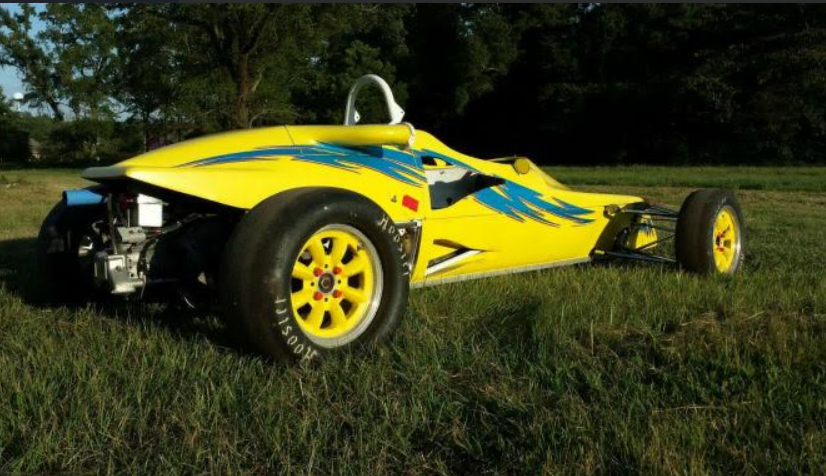

1982 Crossle Formula Ford – Restored Race Car

This 1982 Crossle Formula Ford is a restored vintage open-wheel race car featuring a rebuilt stock engine, refreshed systems, and an extensive collection of spare racing components. Chassis No. 50F 82 05 makes this a distinctive period Formula Ford chassis suitable for vintage racing, track use, or continued preparation for competition.

The car has been restored with attention to its mechanical systems while retaining the character of a vintage Formula Ford. The bodywork has normal wear and tear consistent with a previously used race car, while the engine has been freshly rebuilt using a stock configuration. The car is equipped with Aeroquip fittings, providing upgraded connections throughout the applicable systems.

The current package does require several items before it is ready for competition. Specifically, the car needs a fuel cell, harness, fire system, and tires. These components should be selected and installed according to the applicable vintage-racing organization and current safety regulations.

One of the major advantages of this Crossle is the extensive collection of spares included with the car. The package contains multiple sway bars for both front and rear suspension, a large selection of Heim joints and steering rack ends, spare springs, A-frame break-away clips, and replacement front and rear uprights.

The drivetrain spare package is particularly comprehensive. It includes eight listed gear sets, two dog rings, layshaft bearings, a Hewland reverse-drive gear, and a fine-thread Hewland layshaft. These components provide useful options for maintaining and setting up the transmission for different track requirements.

Additional service parts include front and rear seals, a valve-cover gasket, and an oil-pan gasket. The sale also includes eight wheels in total, with four currently fitted to the car and four spare wheels.

Chassis & Mechanical Package

The restored Crossle features a freshly rebuilt stock engine and Aeroquip fittings. The suspension package includes multiple sway-bar sizes and spare suspension hardware, allowing the car to be configured according to track conditions and driver requirements.

The included gear sets provide a broad selection of gearing options. Because the supplied information lists the gear combinations individually, they are preserved below exactly as provided.

Specifications

Specification	Details
Year	1982
Make / Model	Crossle Formula Ford
Chassis Number	50F 82 05
Condition	Restored
Bodywork	Normal wear and tear
Engine	Freshly rebuilt stock engine
Fittings	Aeroquip
Fuel Cell	Required / not included
Harness	Required / not included
Fire System	Required / not included
Tires	Required / not included
Wheels	8 total
Wheels on Car	4
Spare Wheels	4

Included Spares

Sway Bars

Rear:

• 1/2″
• 5/8″
• 3/4″ — on the car

Front:

• 5/8″
• 3/4″ — on the car

Heim Joints & Steering Components

• 6 × 1/2″ thread × 3/8″ bore Heim joints
• 1 × 3/8″ thread × 5/16″ bore Heim joint
• 3 × 1/2″ thread × 1/2″ bore Heim joints
• 2 × steering rack ends — 1/2″ thread × 5/16″ bore

Suspension Components

• 4 springs — 500s and 535s
• A-frame break-away clips
• 1 aluminum rear upright
• 2 front uprights — left and right

Gear Sets

The supplied package includes the following listed gear sets:

• 24–27
• 24–28
• 25–27
• 25–25
• 21–30
• 23–28
• 25–26
• 26–25
• 23–28

Transmission / Hewland Components

• 2 dog rings
• 1 old layshaft bearing
• 1 new layshaft bearing
• 1 Hewland reverse-drive gear
• 1 Hewland fine-thread layshaft

Gaskets & Seals

• 1 front seal
• 1 rear seal
• 1 valve-cover gasket
• 1 oil-pan gasket

Wheels

• 8 wheels total
• 4 wheels currently on the car
• 4 spare wheels

Key Features

• Restored 1982 Crossle Formula Ford
• Chassis No. 50F 82 05
• Freshly rebuilt stock engine
• Aeroquip fittings
• Extensive suspension spares
• Multiple sway-bar sizes
• Multiple spare springs
• Spare front and rear uprights
• Comprehensive Heim-joint selection
• Multiple Hewland gear sets
• Spare dog rings and layshaft components
• Hewland reverse-drive gear
• Eight wheels included
• Four spare wheels
• Extensive gasket and seal package

Preparation Required

The car is restored but not currently complete for competition. The following items are specifically identified as needed:

1. Fuel cell
2. Racing harness
3. Fire system
4. Tires

These safety and running components should be installed and verified before track or competition use in accordance with the applicable racing regulations.

1982 Crossle Formula Ford chassis No. 50F 82 05. Restored vintage Formula Ford with normal body wear, fresh rebuilt stock engine and Aeroquip fittings. Includes an extensive spares package featuring multiple sway bars, Heim joints, steering rack ends, springs, uprights, numerous Hewland gear sets, dog rings, layshaft components, seals, gaskets and eight wheels. The car needs a fuel cell, harness, fire system and tires before competition use.
